Biological Safety Cabinet (BSC) Use



Image compliments of The Baker Company

A laminar flow biological safety cabinet is a valuable supplement to good sterile technique, but is not a replacement for it.  To provide adequate protection, the cabinet user must understand and correctly operate the cabinet.

Start-up Procedure

  1. Your biological safety cabinet may be left running at all times. However, if it has been turned off, turn the blower switch to ON and before using it, let it run at least five minutes for room air to be removed from the cabinet. Make sure you have airflow by listening for blower sounds or by feeling the airflow with your fingers; also note that the magnahelic gauge reads in the proper range.
  2. If your cabinet is equipped with a U.V. light, turn it off, and turn on the fluorescent light. Make sure the drain valve is closed.
  3. The work surface, interior walls (not including the supply diffuser), and the interior surface of the window should be wiped with 70% ethanol (ETOH), a 1:100 dilution of household bleach (i.e., 0.05% sodium hypochlorite), or other disinfectant as determined by the investigator to meet the requirements of the particular activity. Remove residual chlorine by wiping the surface with 70% ETOH or sterile water. Similarly, the surfaces of all materials and containers placed into the cabinet should be wiped with 70% ETOH to reduce the introduction of contaminants. Further reduction of microbial load in materials to be placed or used in BSCs may be achieved by periodic decontamination of incubators and refrigerators.
  4. After placing your equipment inside the cabinet, close the sash to the proper operating height (normally eight inches but on some cabinets, ten inches). Check the owners’ manual for proper height. Avoid working in and operating the cabinet with the sash in any other position than the manufacturers recommended sash height.
  5. Wait another two to three minutes before working to clear all the contaminants from the work area.
  6. Use proper personal protective equipment as a barrier to possible exposures and to reduce contamination of your research. Wear a lab coat, gloves, and eye or face protection, if appropriate.

Working in the Cabinet

  1. Never operate a cabinet while a warning light or alarm is on.
  2. The operator should be seated with the bottom of the sash level with his/her armpits.
  3. Perform all work using a limited number of slow movements, as quick movements disrupt the air barrier. Try to minimize entering and exiting your arms from the cabinet, but if you need to, do it slowly, and perpendicular to the sash; avoid sweeping movements.
  4. Do not rest arms or other objects on the grill.
  5. To avoid excessive movements in and out of the cabinet, discard contaminated waste (i.e. pipettes, tubes, etc.) into a tray, container, or biohazard bag within the cabinet. Low profile containers are preferable, as they are less obstructive to airflow.
  6. Keep all materials at least four inches inside the sash opening.
  7. Plastic backed absorbent toweling can be placed on the work surface (but not on the front or rear grill openings). This toweling facilitates cleanup and reduces splatter and aerosol formation during a spill.
  8. All materials should be placed as far back in the cabinet as practical, toward the rear edge of the work surface and away from the front grill of the cabinet. Similarly, aerosol-generating equipment (e.g., vortex mixers, tabletop centrifuges) should be placed toward the rear of the cabinet.
  9. The general workflow should be from clean to contaminated (dirty). Materials and supplies should be placed in such a way as to limit the movement of dirty items over clean ones.
  10. Activities that create eddy currents (opening and closing doors and windows, personnel walking near the cabinet), should be minimized as these types of activities can disrupt the air barrier.
  11. Open flames in a biosafety cabinet create a fire hazard and can damage the HEPA filter. If it is absolutely necessary to use a flame, a touch-plate micro burner equipped with a pilot light or a micro-incinerator must be used. Place the burner at the rear of the work area where the air turbulence from the flame will have the least possible effect on the air stream. Standard open-flame Bunsen burners should not be used. The burner must be turned off when the work is completed.
  12. Aspirator bottles or suction flasks should be connected to an overflow collection flask containing appropriate disinfectant, and to an in-line HEPA or equivalent filter.

Completing Work in the Cabinet

  1. Ensure waste has been discarded into the appropriate waste container(s) located inside of the cabinet.
  2. Disinfect all surfaces, equipment, containers and other materials that have come in contact with a biological agent.
  3. Remove contaminated gloves within the cabinet and discard in the appropriate waste container located inside of the cabinet. Alternatively, you can spray gloves with a disinfectant that is compatible with the glove material. Check with the glove manufacturer to determine glove compatibility with chemical disinfectants.
  4. Exit the cabinet.
  5. Don a new pair of gloves.
  6. Remove all disinfected materials from the cabinet.
  7. After all items have been removed, wipe down all surfaces of the cabinet with a disinfectant, including the sides and back, and the interior of the glass.
  8. The cabinet should be allowed to run for at least three minutes with no activity so that the airborne contaminants will be purged from the work area. BSCs can be run continuously. If the cabinet will be shut off, ensure the sash is closed completely.

Cabinet Locations

  1. Cabinets should be placed away from doors, windows, vents or high traffic areas to reduce turbulence.
  2. The cabinet exhaust should have a twelve to fourteen inch clearance from the ceiling for proper exhaust airflow. Also, allow a twelve-inch clearance on both sides of the cabinet for maintenance purposes.

Common Errors to Avoid

  1. Keep papers, paper towels, plastic backed absorbent toweling, vials, or any other objects from being pulled into the back, front, or side slots if no grill is in place to prevent this.
  2. Do not store equipment or supplies in the cabinet.
  3. Do not use the top of the cabinet for storage. The HEPA filter could be damaged and the airflow disrupted.
  4. Do not place items on the front or rear perforated grills. This reduces the airflow.
  5. Do not rest arms on the front gill. This reduces airflow.
  6. Make sure the cabinet is level. If the cabinet is not, the airflow can be affected.
  7. Never disengage the alarm, as it indicates improper airflow, thereby effecting performance and endangering the researcher or the experiment.
  8. Never completely close the window sash with the motor running. This may cause the motor to burn out.
  9. U.V. lights can accumulate dust and dirt that will block the germicidal effectiveness of the light.  Bulbs can continue working for months or years after they stop providing the necessary wattage for disinfection purposes. For these reasons EHS does not recommend the use of the U.V. light for disinfection purposes. If you still wish to use your U.V. light, you should clean U.V. lamps weekly to remove build-up of dirt and dust. Additionally, U.V. lights should be tested for efficacy or replaced annually.

Standards

Your cabinet must be certified upon installation, annually thereafter, anytime it is moved (even if just across the room), and after certain repairs. Biosafety cabinet certification is performed by ENV Services, and coordinated by Environmental Health and Safety. To make arrangements for certification email Whitney.Tucker@envservices.com or call 800­690­3368. If you attempt to contact Whitney Tucker and she is out of the office or unavailable at the time of your inquiry please email Serena.Alvarado@envservices.com [3] or request her via the same phone number. If you have any questions, or think there may be a problem with your cabinet, do not hesitate to contact EHS at bio­cabinet@uiowa.edu [4]. Any decontamination, repairs, or adjustments should only be made by NSF accredited technicians.

Helpful Links

Air Flow Patterns in Biological Safety Cabinets

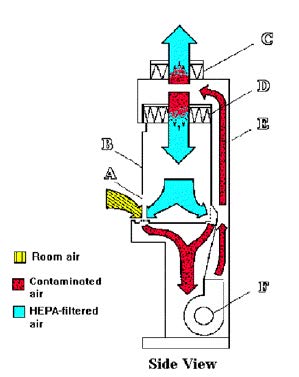

Class II, Type A BSC
 Air Flow Patterns in Biological Safety Cabinets Class II Type A

Class II, Type B1 BSC
Air Flow Patterns in Biological Safety Cabinets Class II Type B1

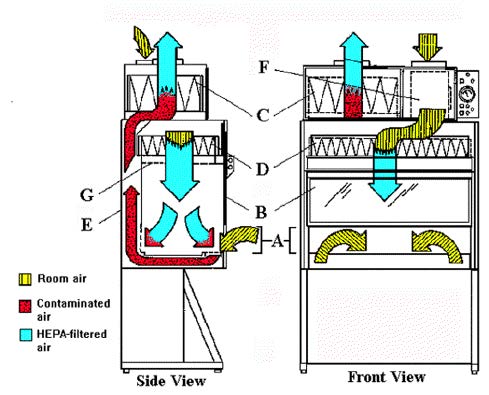

Class II, Type B2 BSC

Air Flow Patterns in Biological Safety Cabinets Class II Type B2

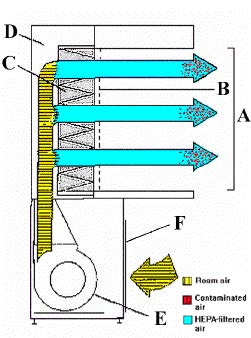

Horizontal Flow "Clean Bench"

Air Flow Patterns in Biological Safety Cabinets Horizontal Flow
